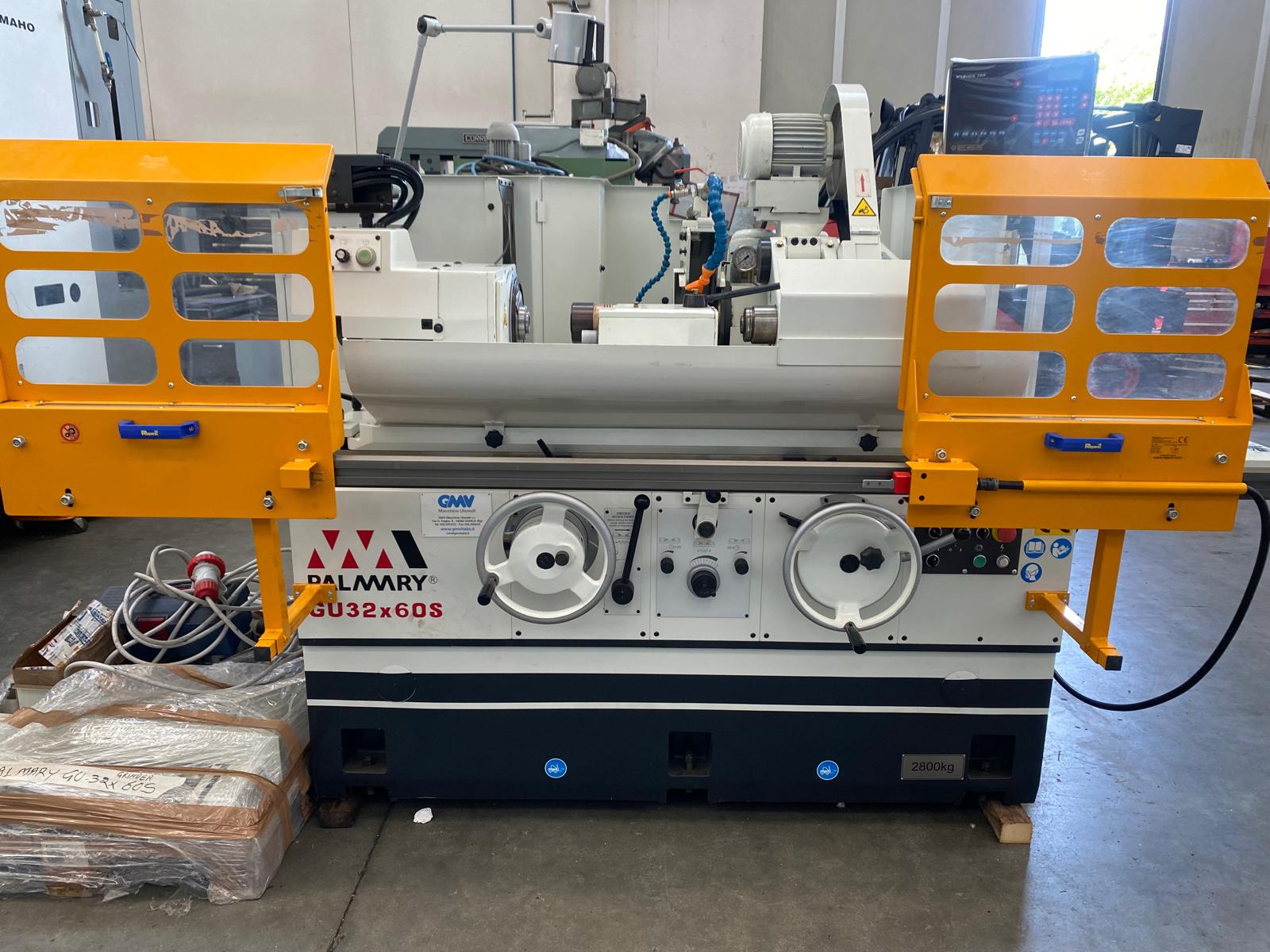

2018 Palmary GU 32x60 S
Sold
2018 Palmary GU 32x60 S
Specifications
| Manufacturer | Palmary |
| Model | GU 32x60 S |
| Year | 2018 |
| Condition | Used |
| Distance between centers | 600 mm |
| Max diameter over bed | Ø 320 mm |
| Max workable diameter | Ø 300 mm |
| Max load capacity between centers | 100 Kg |
| Swivel angle of wheel spindle head | +/- 30° |
| Wheel spindle Head travel | 160 mm |
| Sliding carriage travel | 295 mm |
| Minimum setting unit (micro-adjust) | 0,001 mm |
| One turn of handwheel (graduation) | 2 x (0,005) mm |
| Wheel spindle motor power | 3,75 kW |
| Wheel dimensions (Ext. dia. X thick X Int. dia.) | 355 x 50 x 127 mm |
| Wheel speeds range | 1.783 Rpm |
| Swivel angle of work spindle haed | 120° (+90° / -30°) |
| Center taper of work spindle head | MT-4 |
| Spindle speeds range | 16 ÷ 450 Rpm |
| Work spindle motor power | 0,8 kW |
| Tailstock Taper center | MT-4 |
| Tailstock Quill travel | 25 mm |
| Trasversal table feed | 50 ÷ 4.000 mm/min |

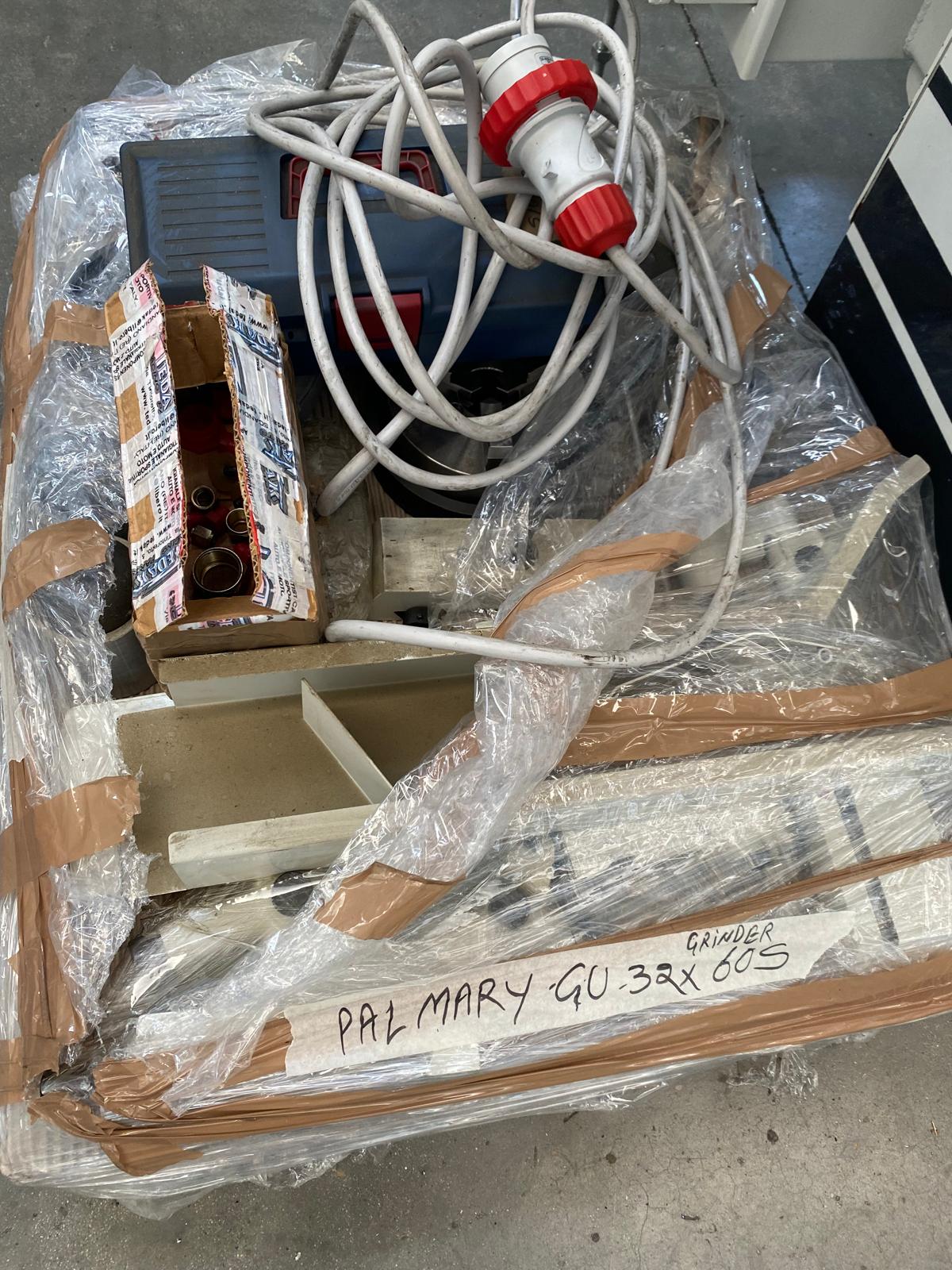

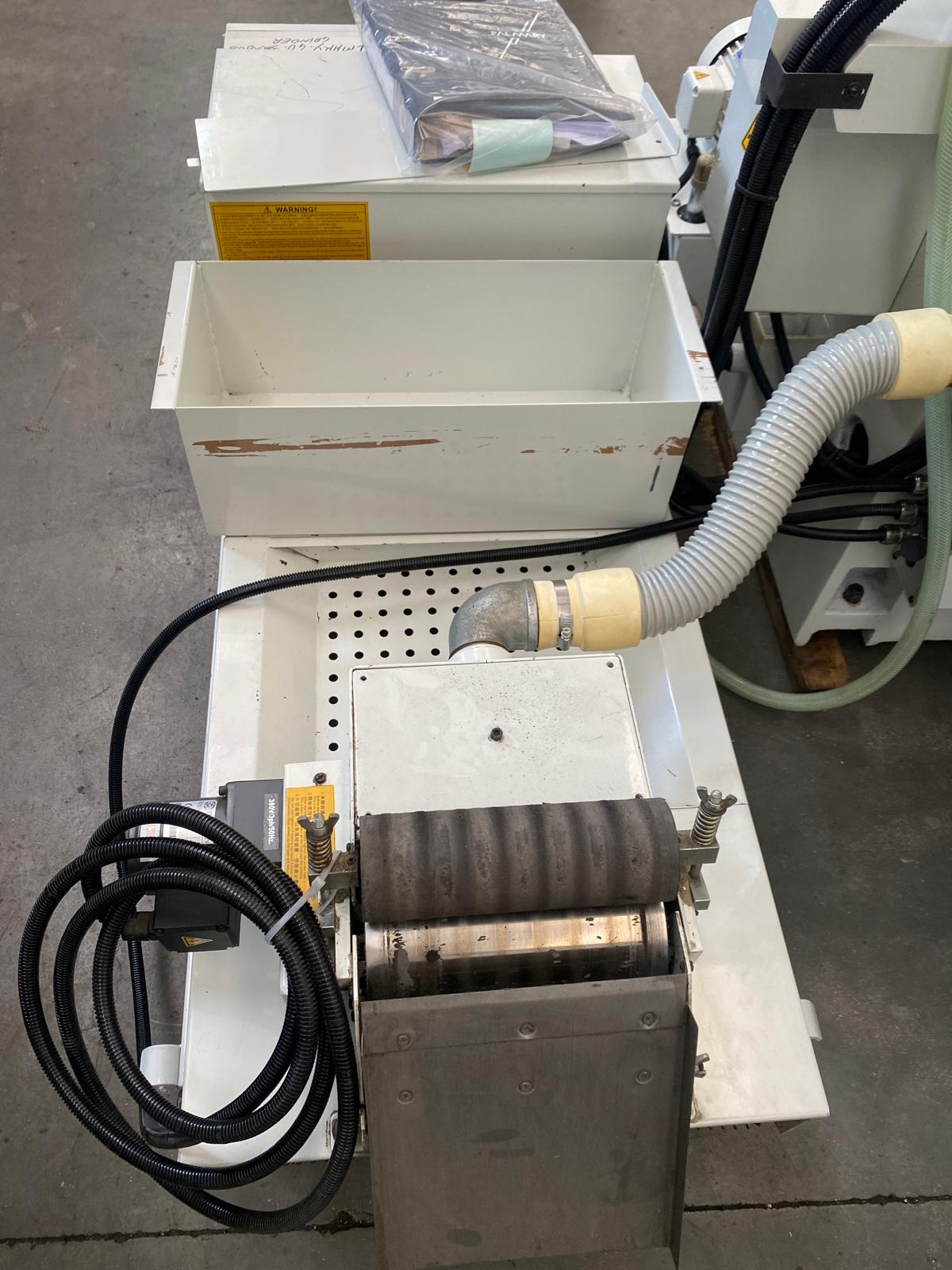

| Accessories & Others | Spindle for internal grinding with 20.000 Rpm - Grinding wheel dresser for external and internal - Nr. 2 steadies (1 open + 1 close) - 3 Jaw chuck dia. Ø 180 mm - Coolant tank of 80 Lt. with magnetic discs pump and paper filter - Manuals - Electrical diagrams - EC CE Declaration |
