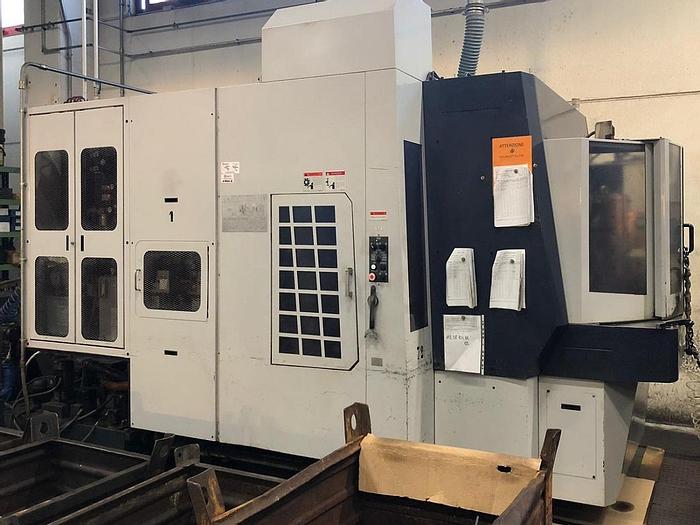

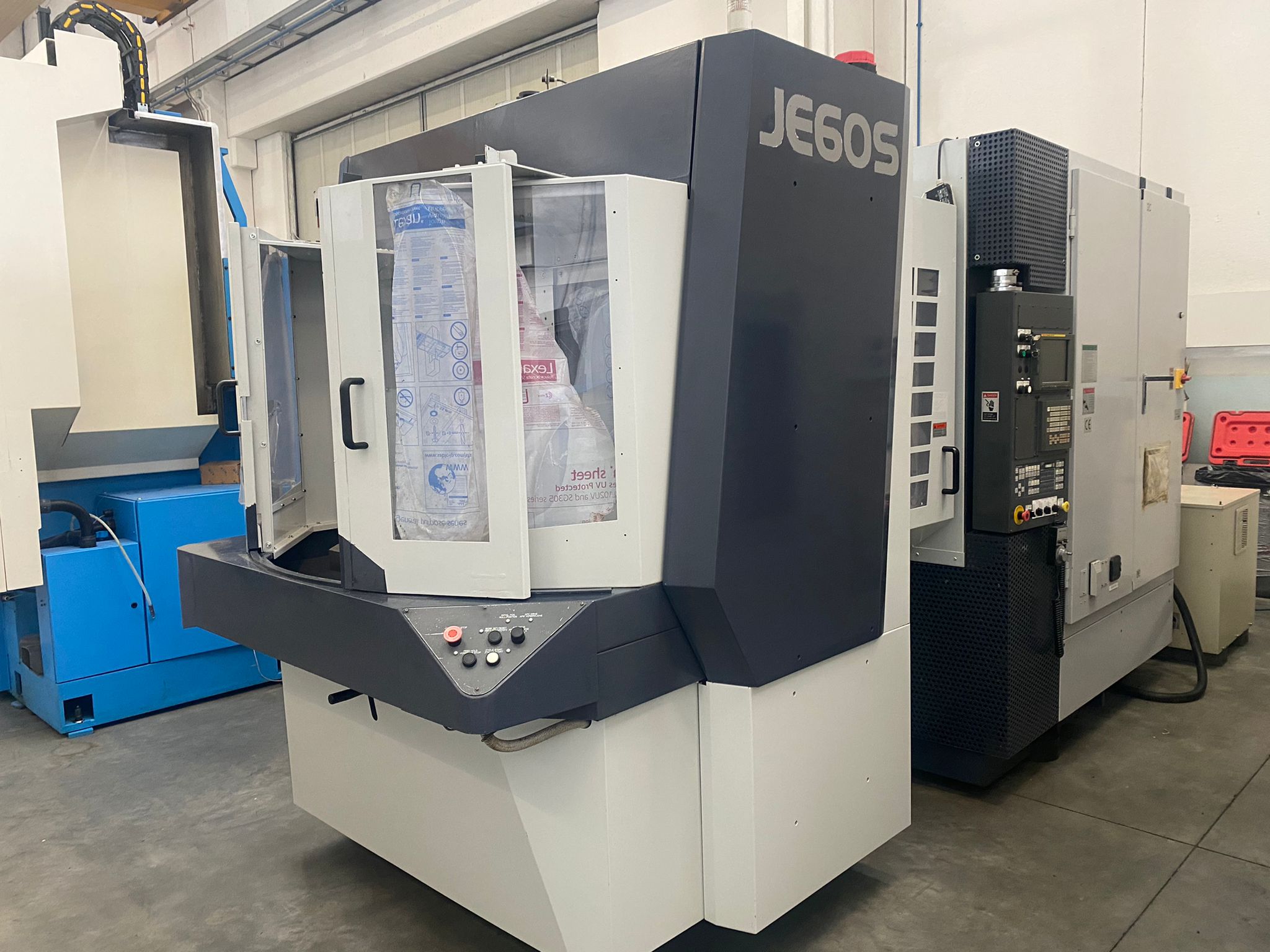

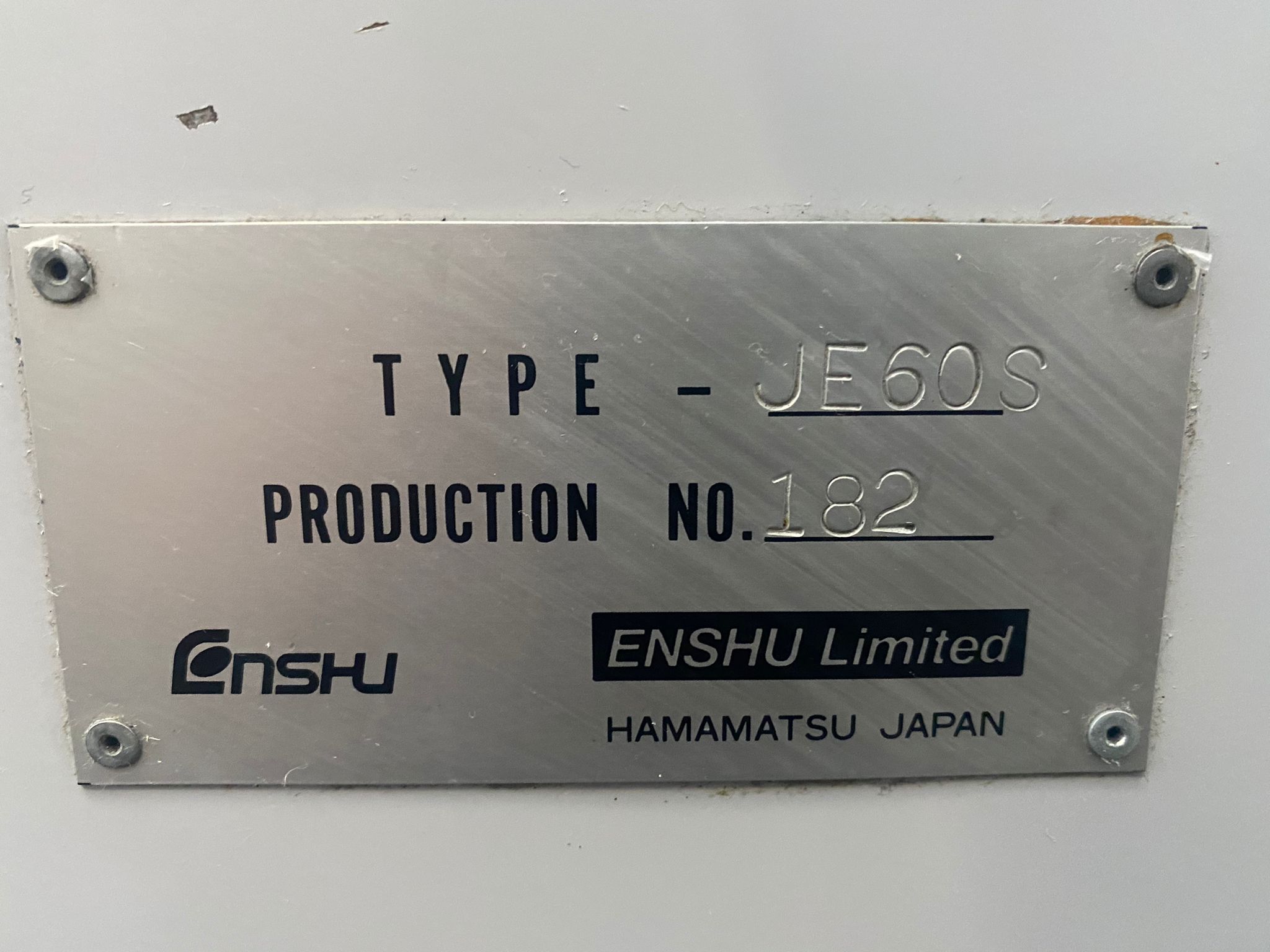

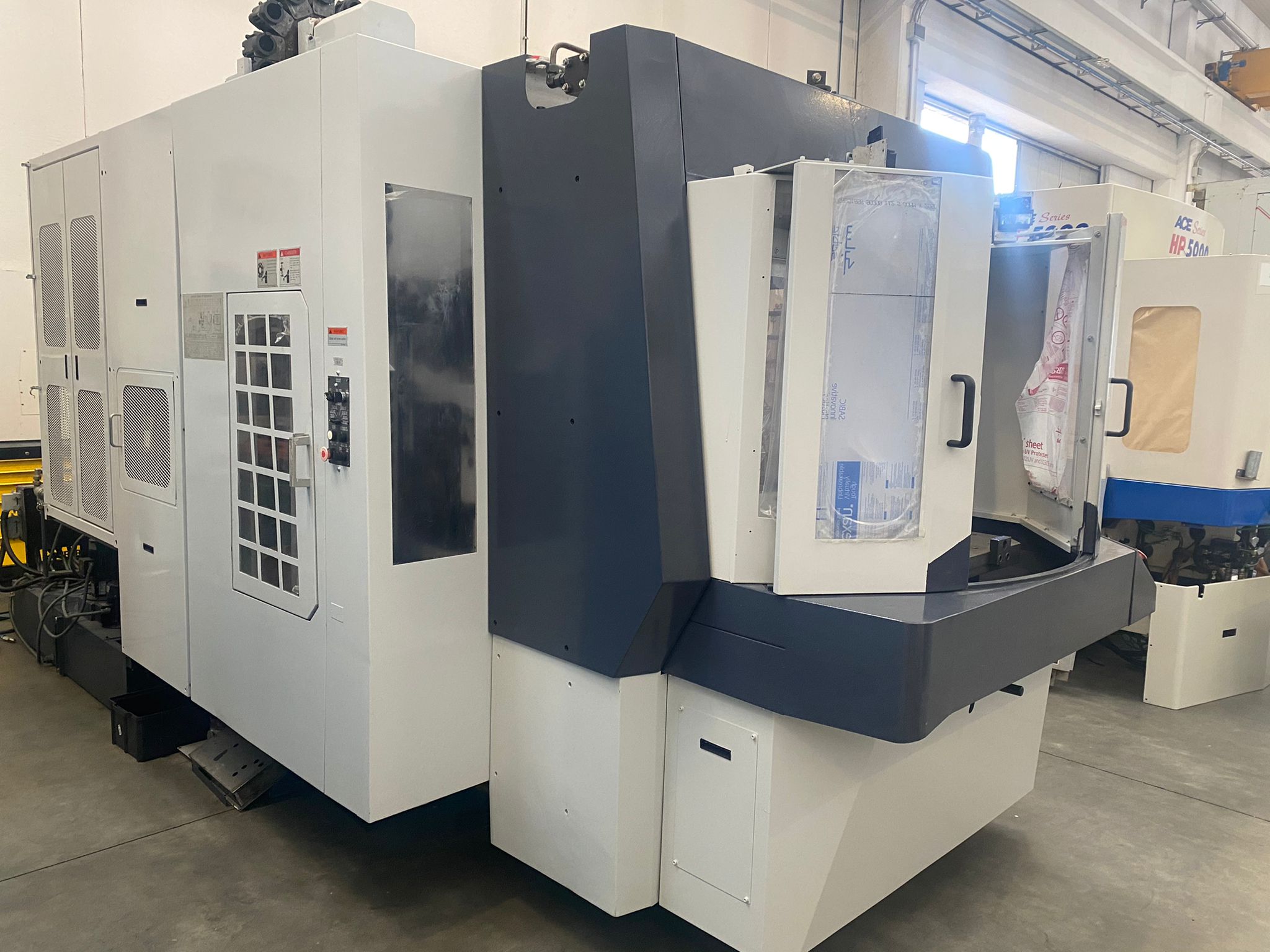

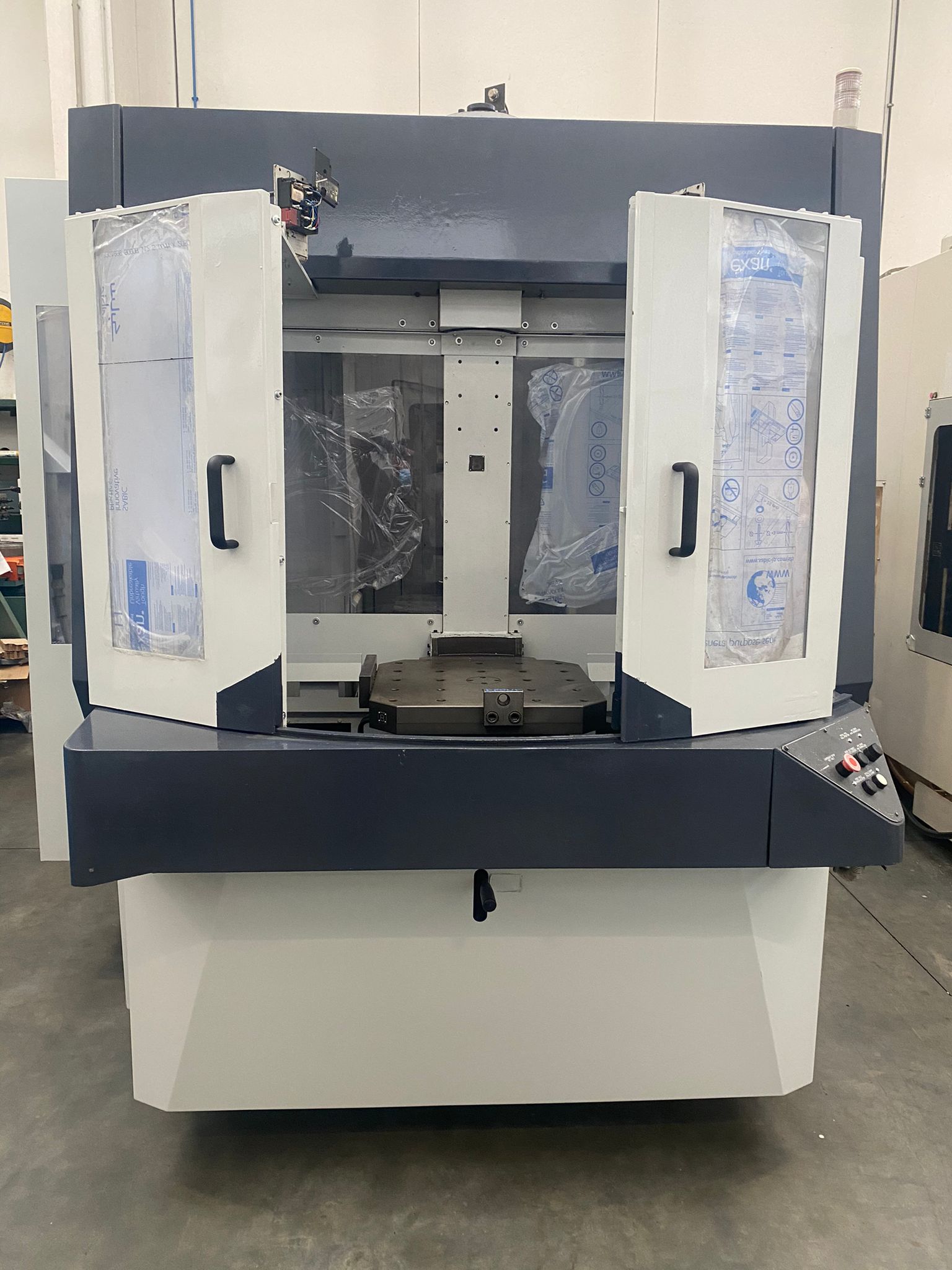

2002 Enshu JE60S
Sold
2002 Enshu JE60S
Specifications
| Manufacturer | Enshu |
| Model | JE60S |
| Year | 2002 |
| Condition | Used |

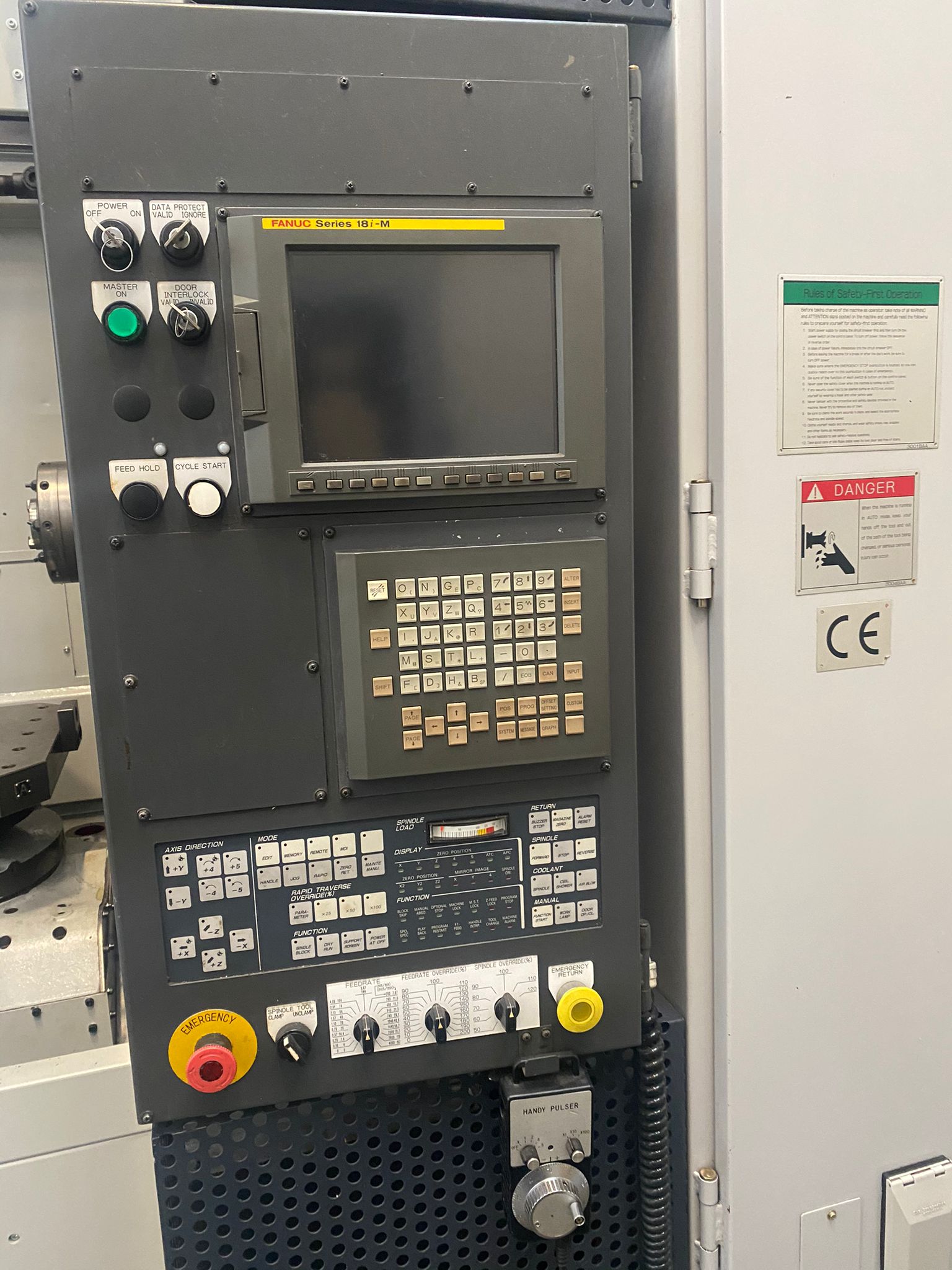

| CNC control | FANUC 18i-M |
| Machine weight | 10 Ton |
| Spindle size | ISO-40 |
| Spindle speed | 13.000 RPM |
| X axis | 600 mm |
| Y axis | 600 mm |
| Z Axis | 630 mm |

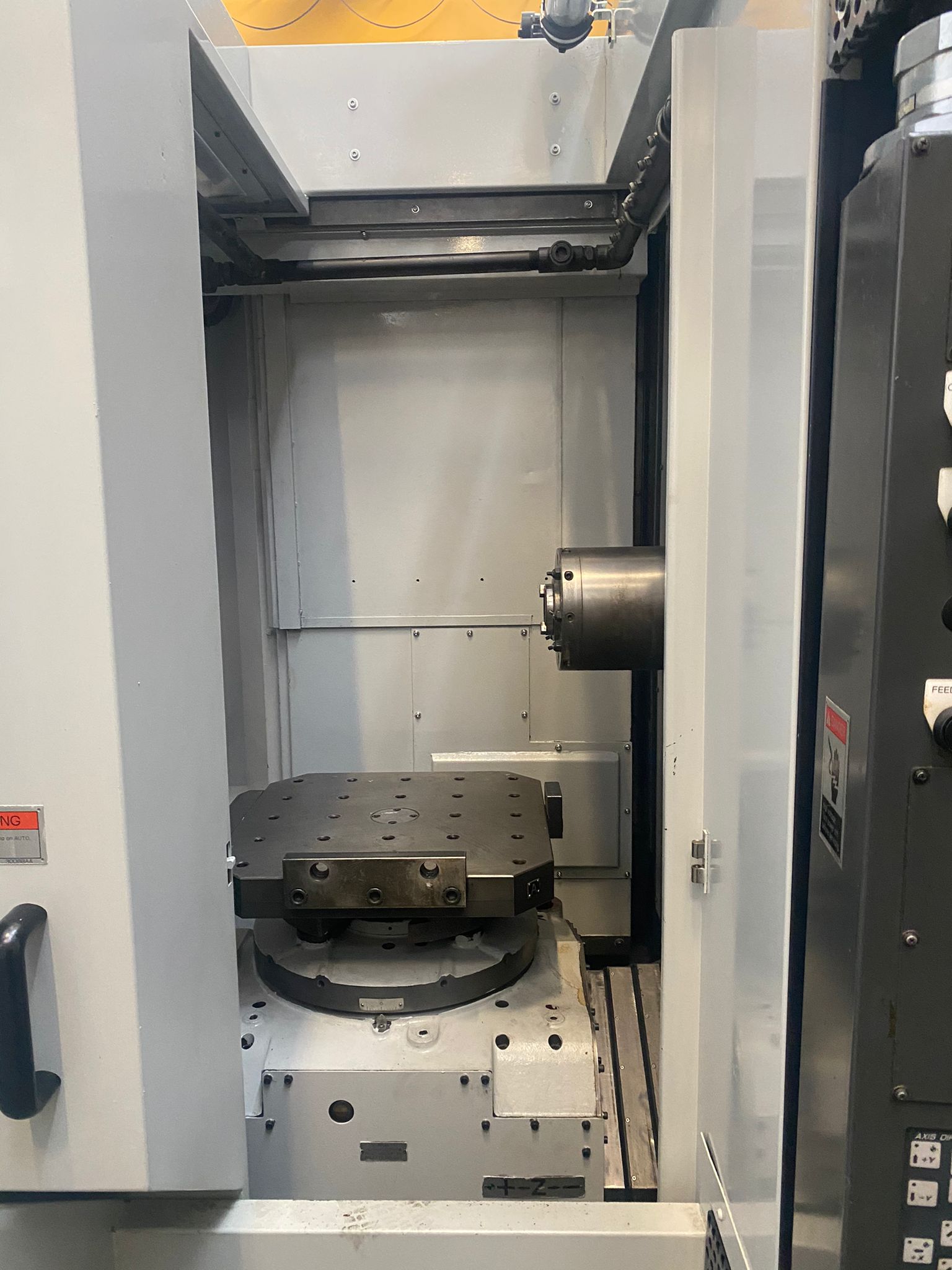

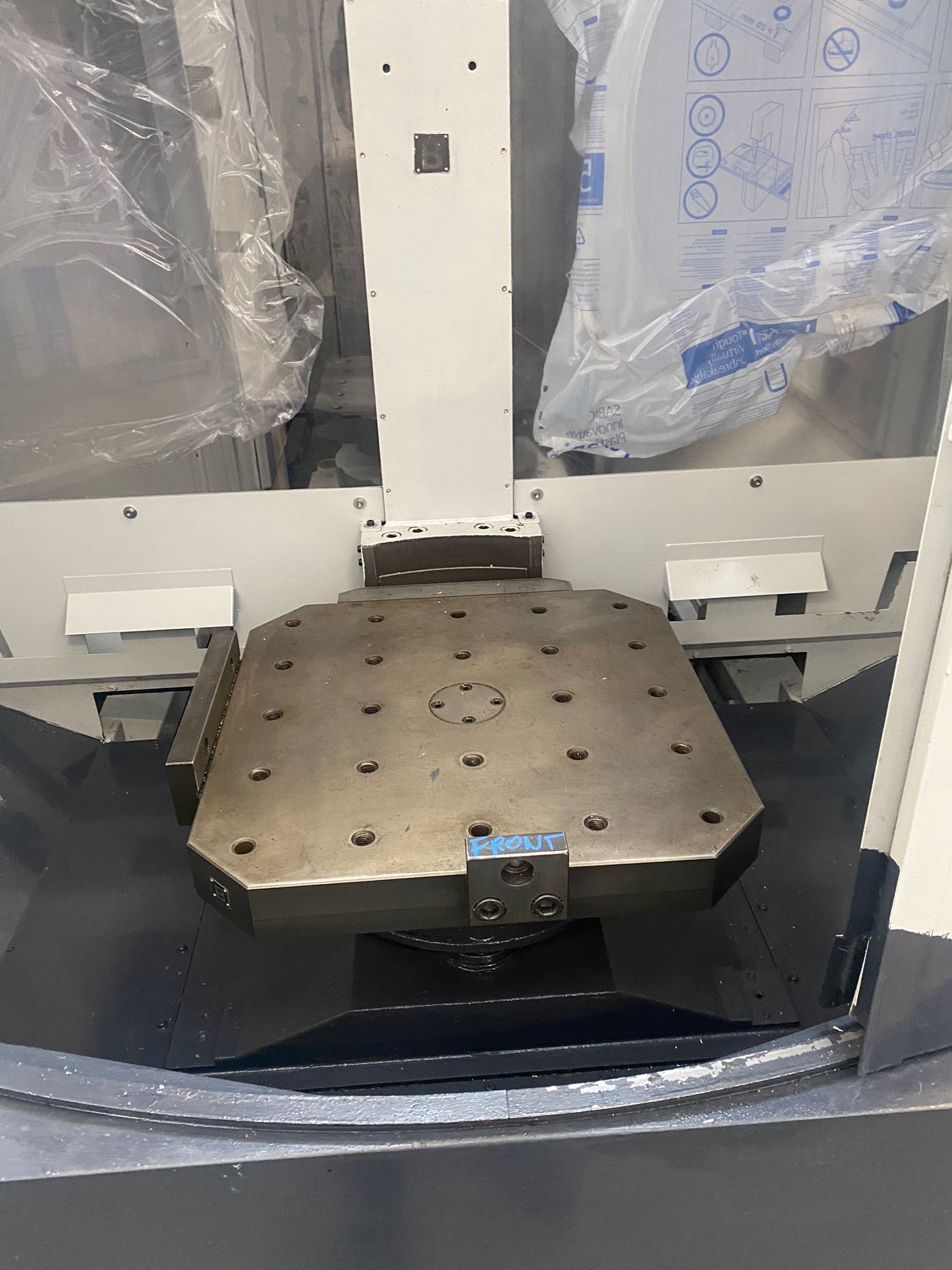

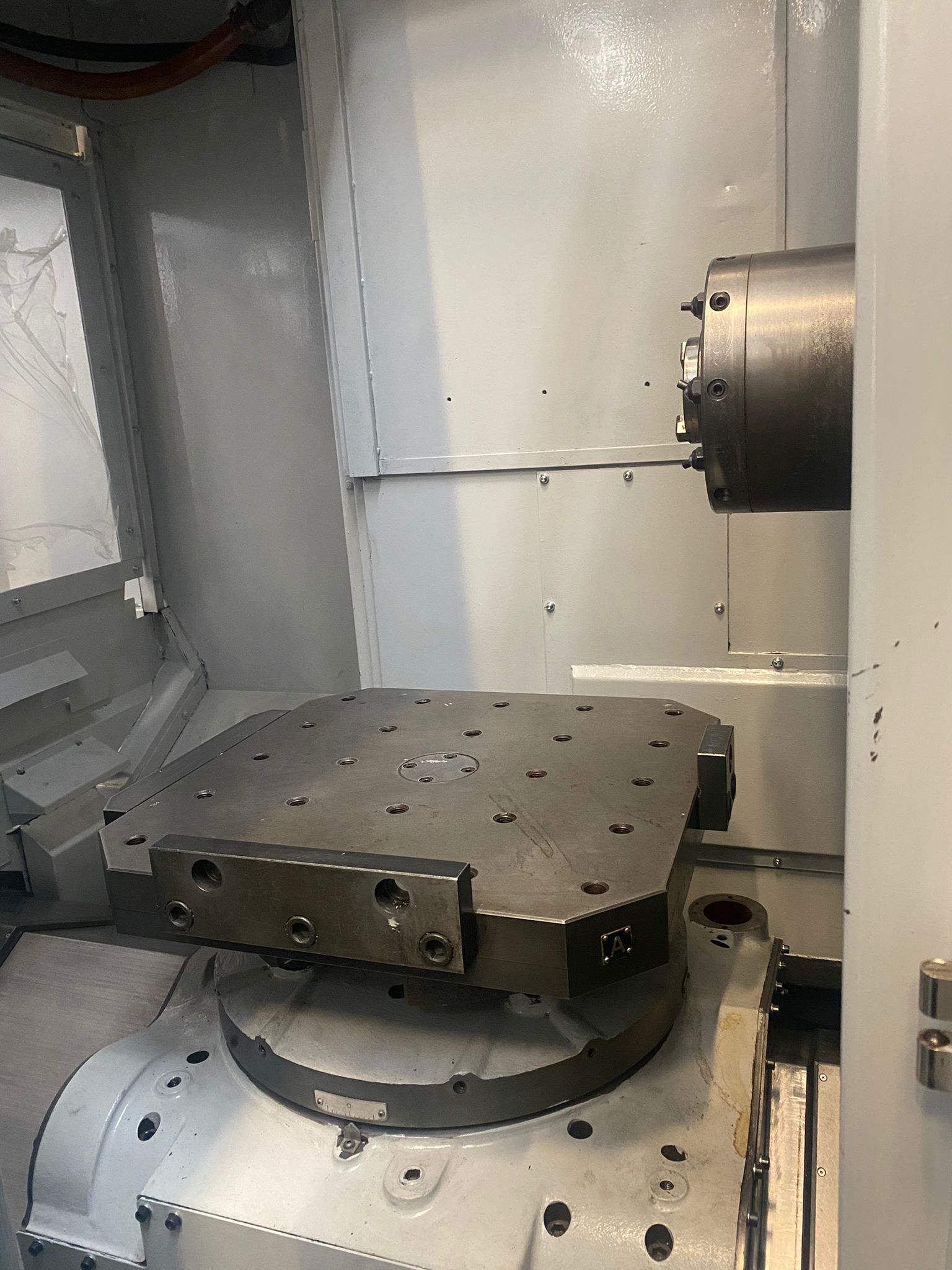

| Table dimensions | 500 x 500 mm |
| Number of stations | 2 stations with 1 pallet each |
| Loading capacity of the table | 500 Kg |
| Table rotation | 360.000 positions (continuous) |
| Rapid feeds x / y / z axes | 50.000 mm / min |
| Feeds in machining x / y / z axes | 15.000 mm / min |
| Tool type | MAS BT-40 |
| Pull stud type | MAS P40T-II (60 °) |

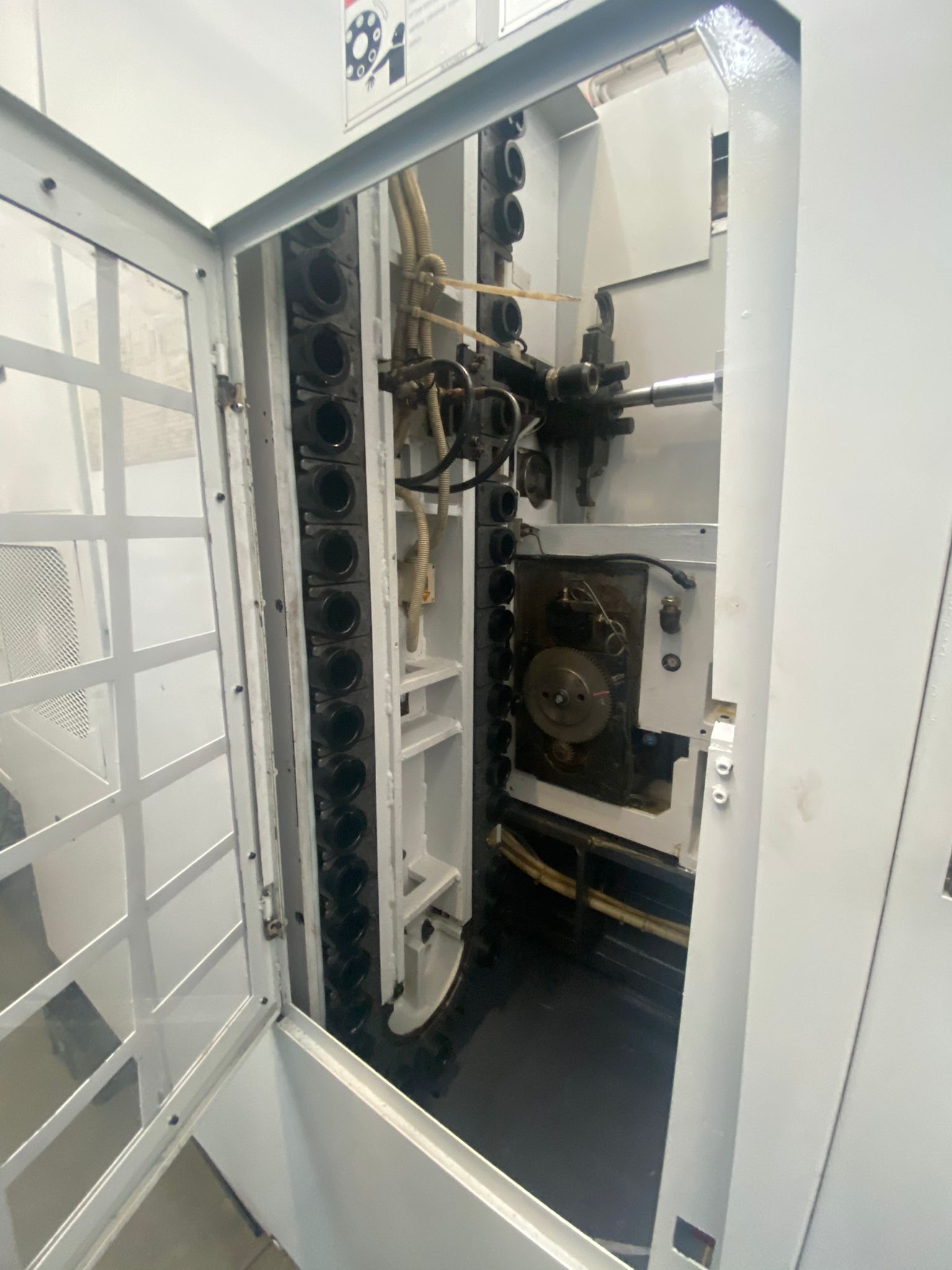

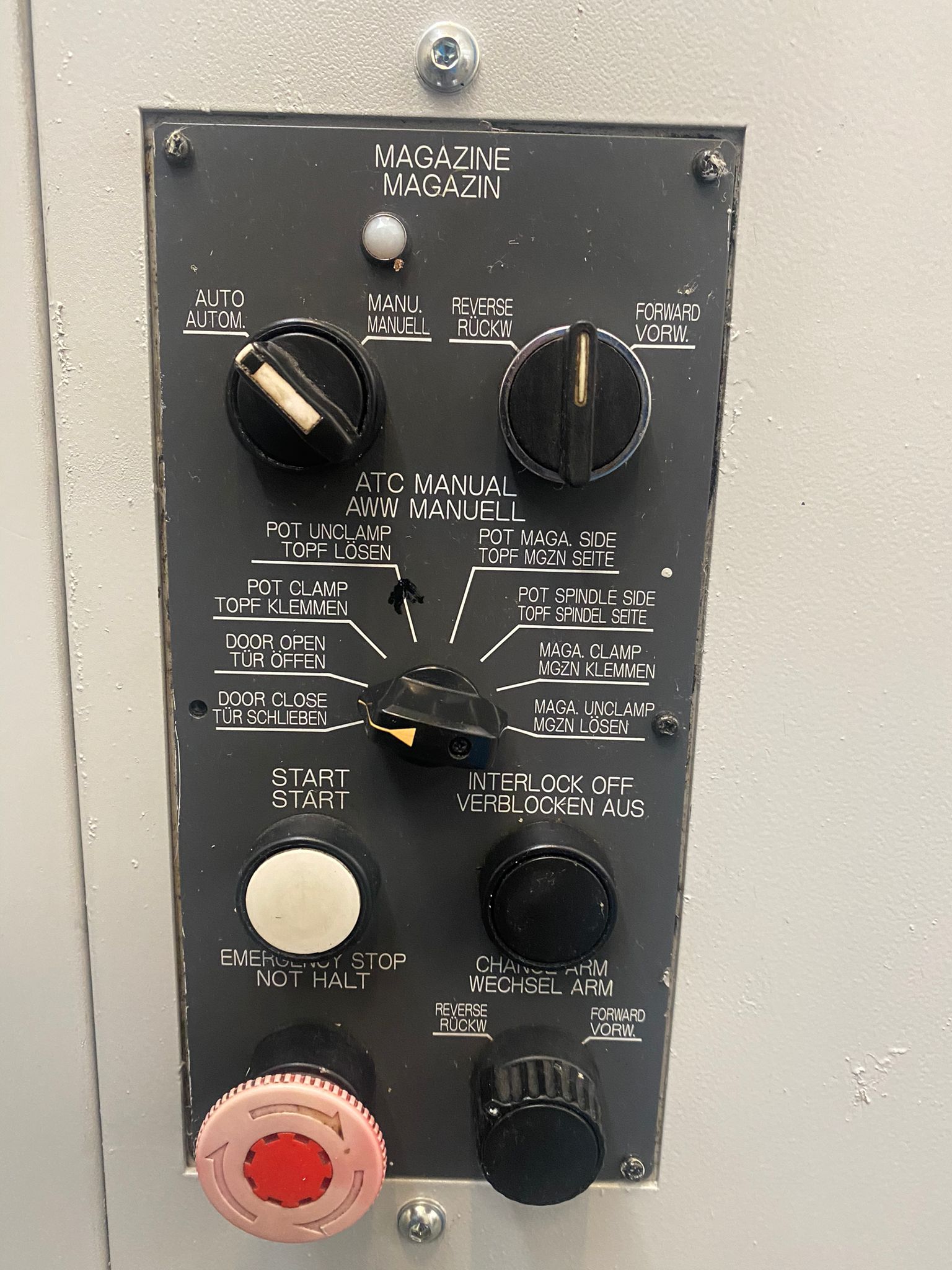

| ATC Positions | 60 positions |
| Tools diameter | 75/145 mm |
| Max tool length | 350 mm |
| Max tool weight | 8 Kg |
