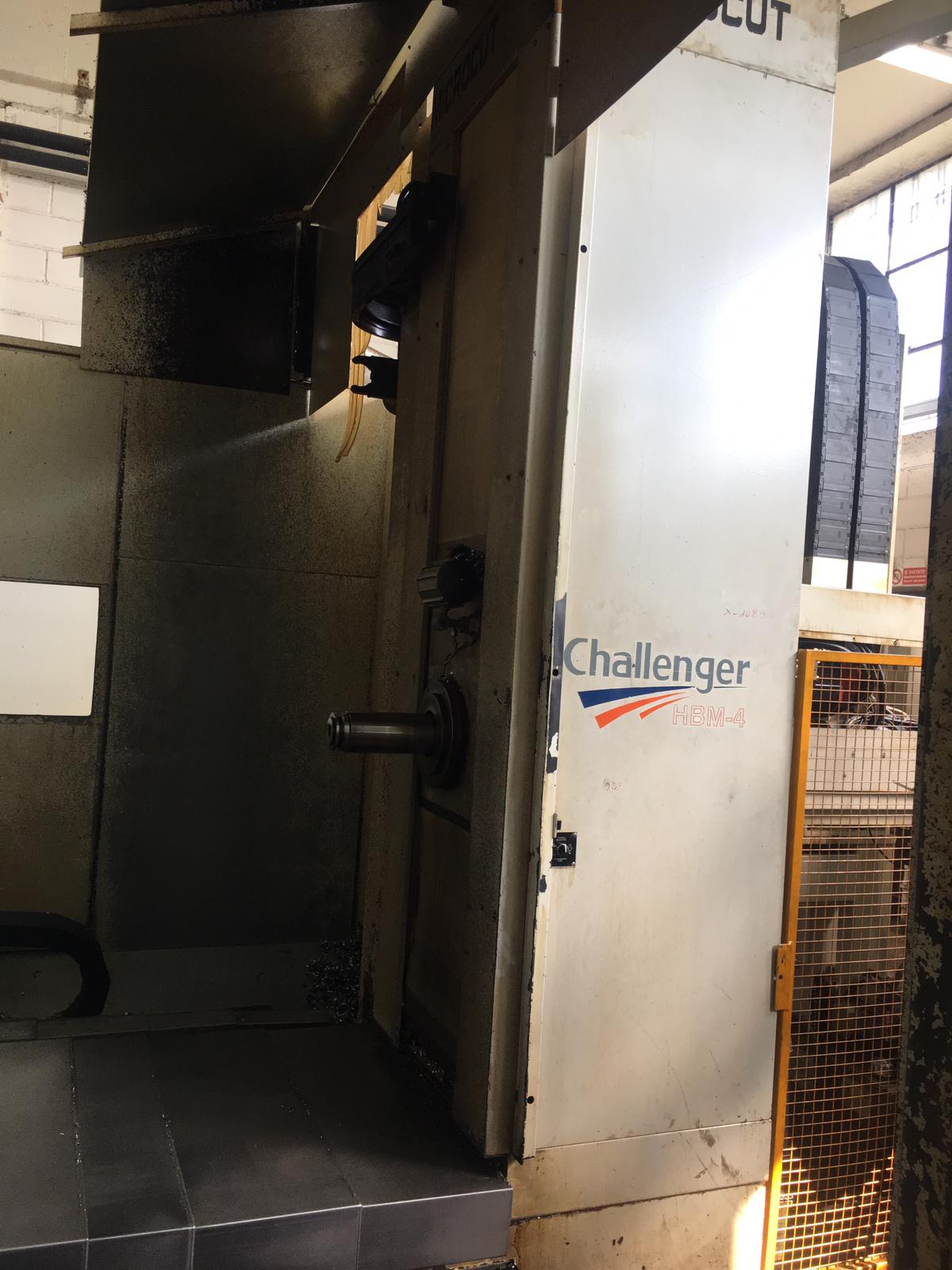

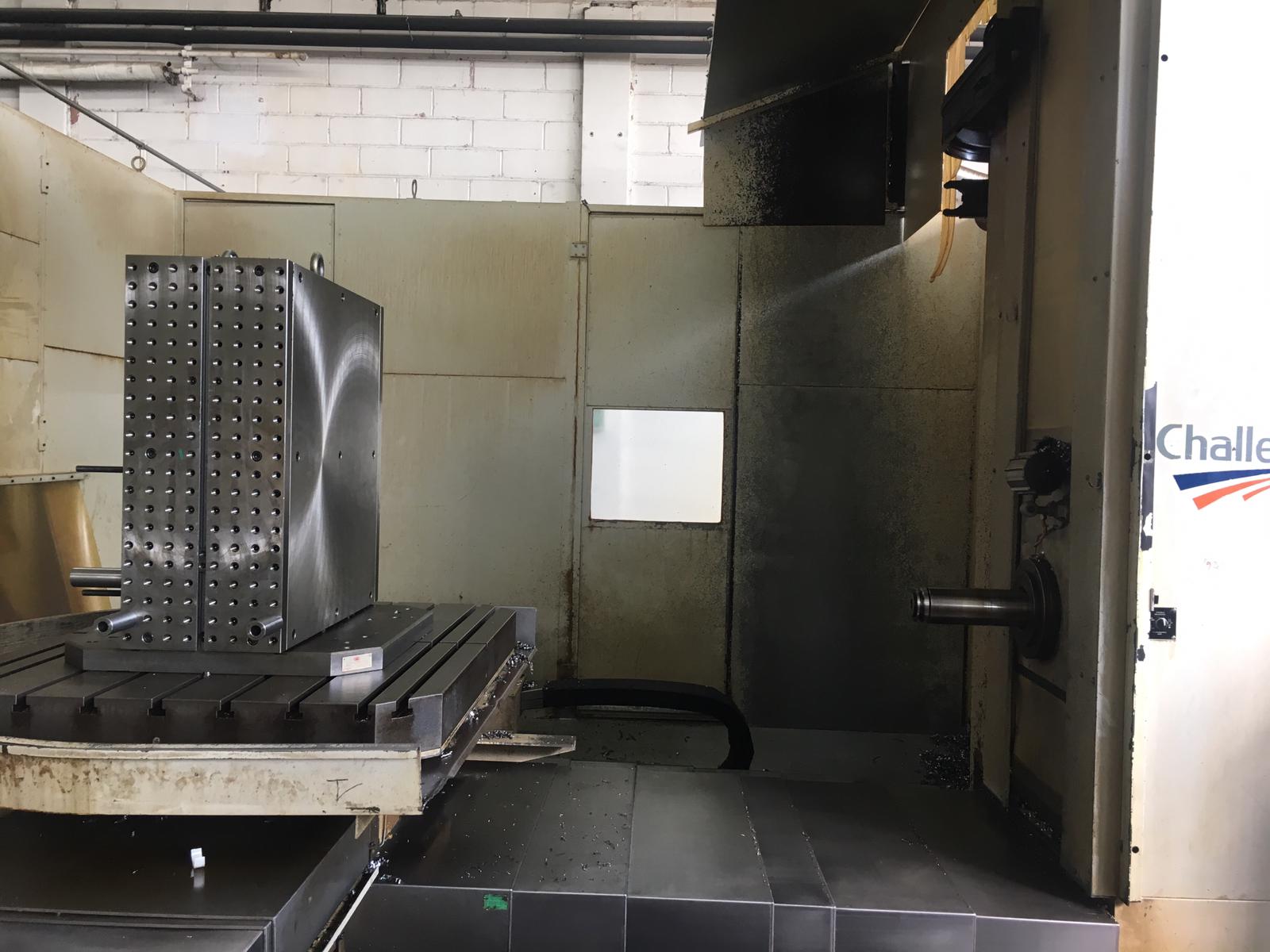

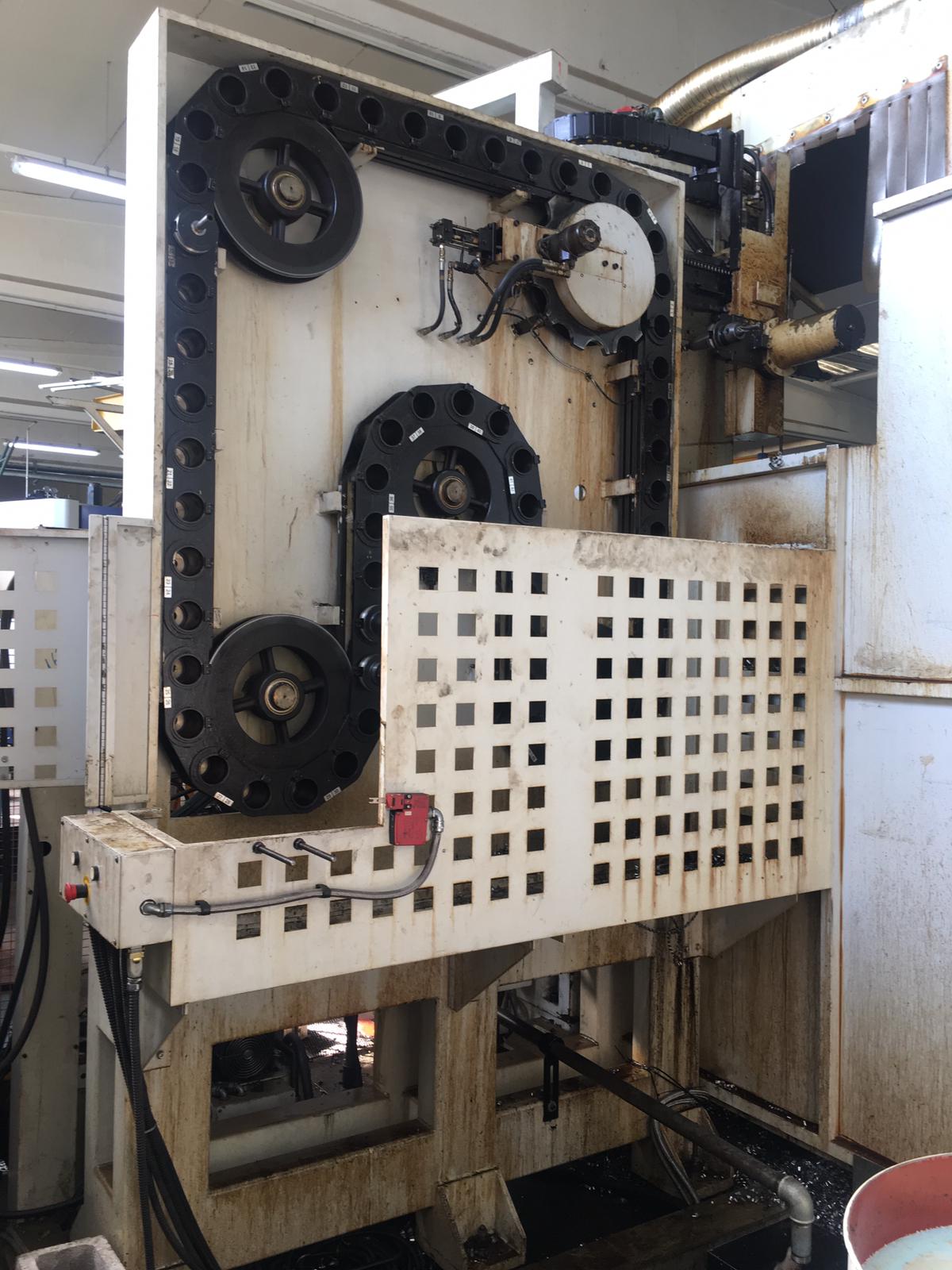

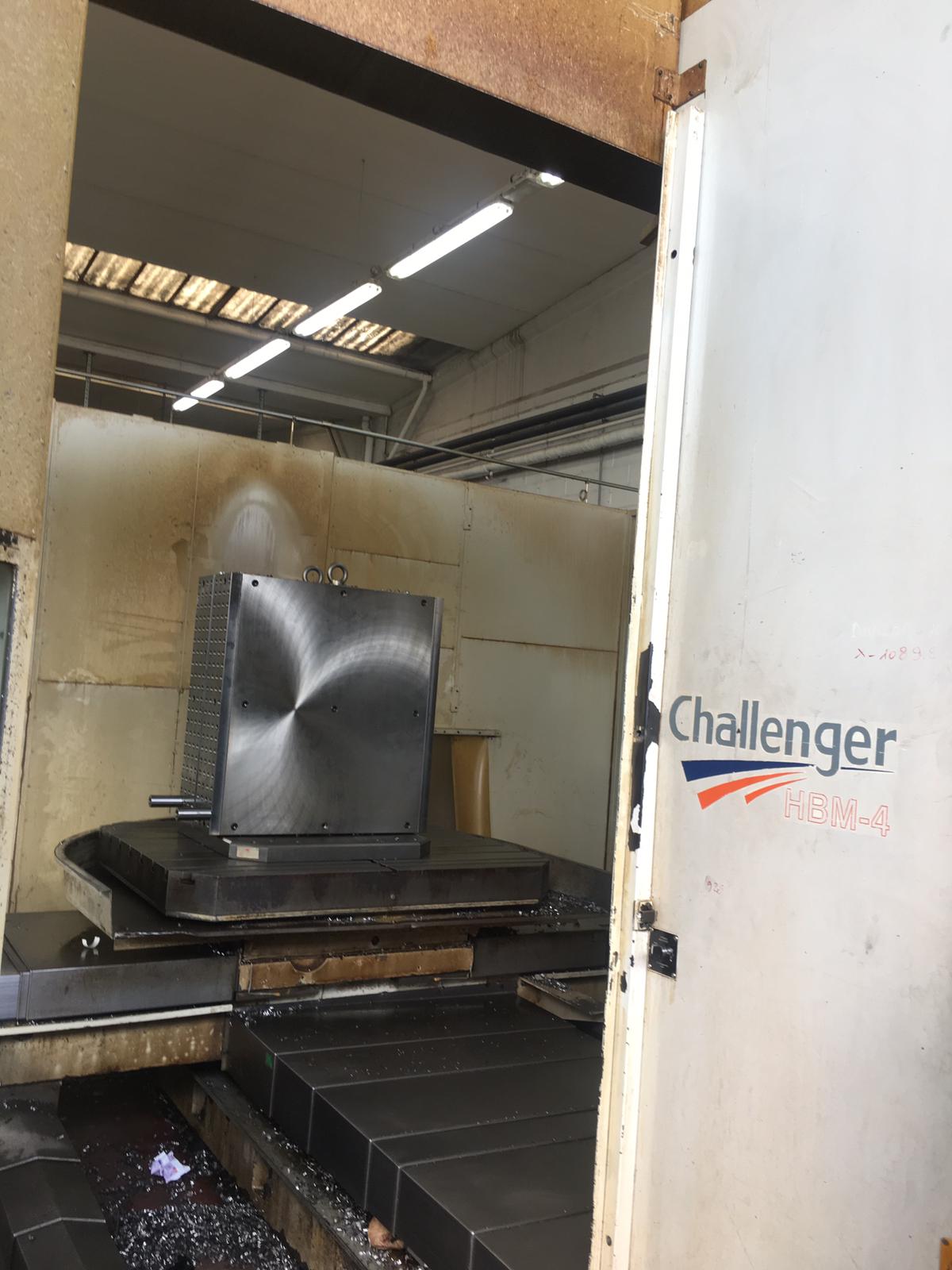

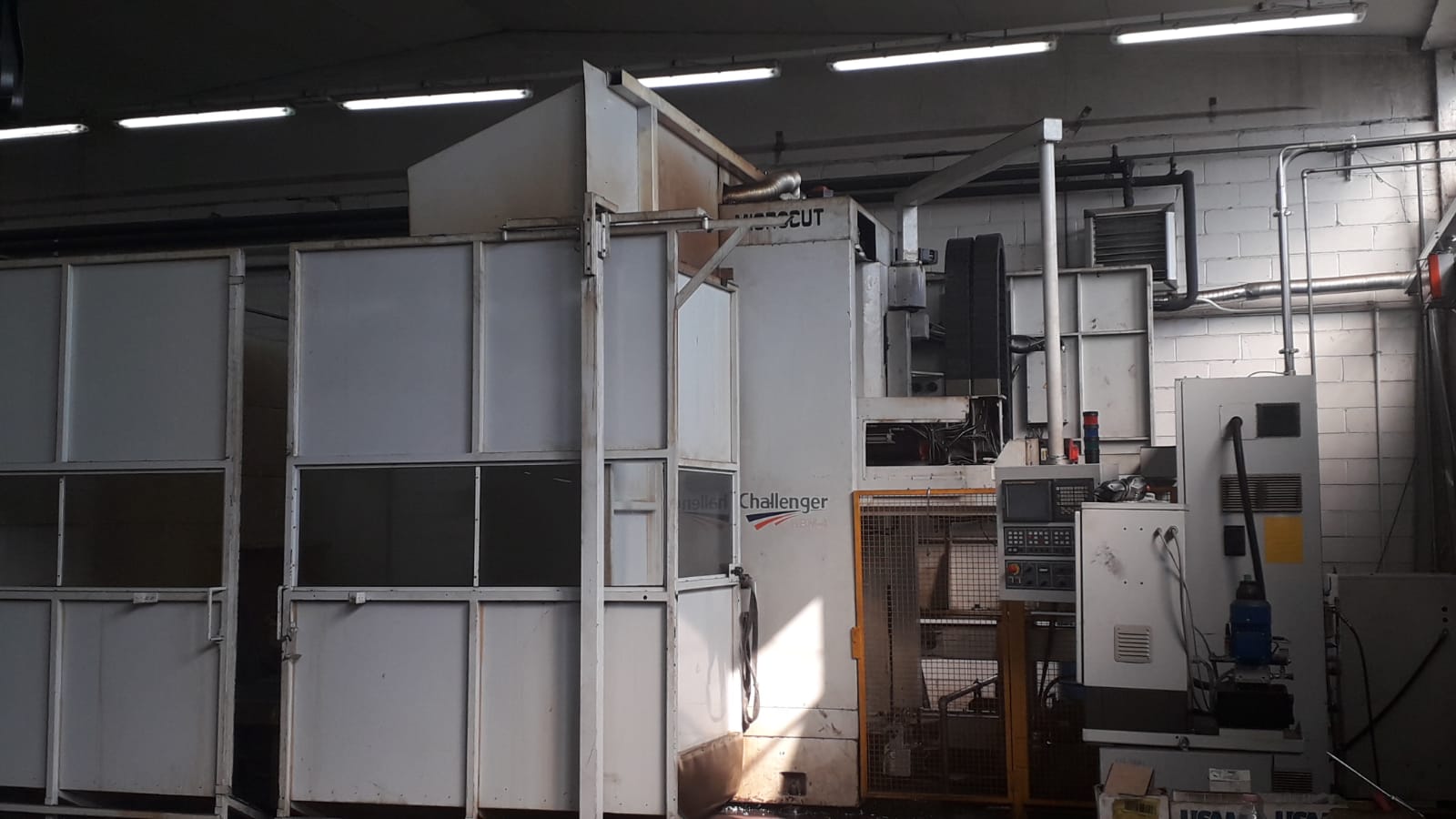

12/2005 Microcut CHALLENGER HBM-4
Sold
12/2005 Microcut CHALLENGER HBM-4
Specifications
| Manufacturer | Microcut |
| Model | CHALLENGER HBM-4 |
| Year | 2005 |
| Condition | Ricondizionati |
| Tool change time | 9 sec. |

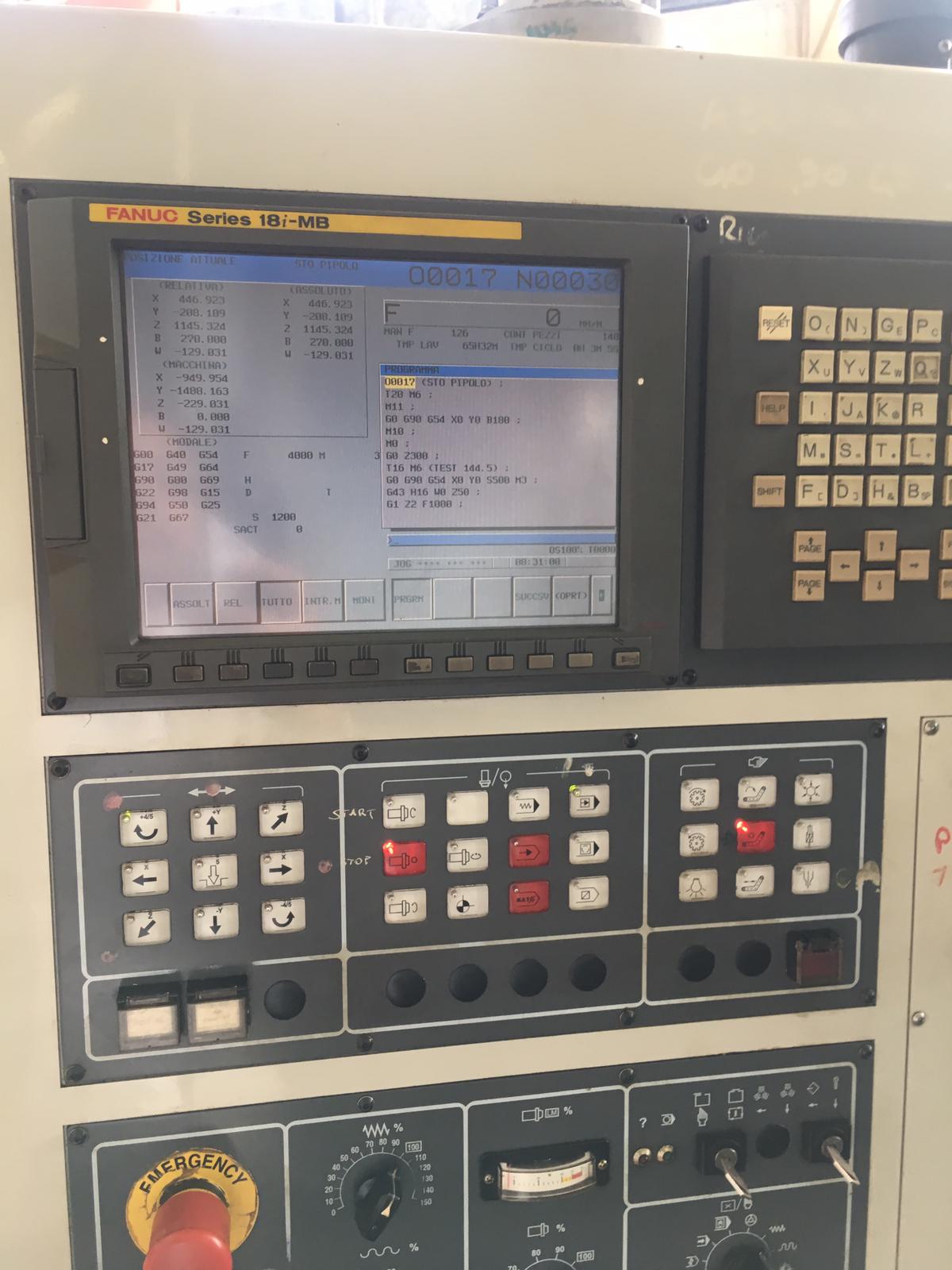

| CNC control | FANUC 18i-MB |
| Machine weight | 22 Ton |
| X axis | 2.200 mm |
| Y axis | 1.600 mm |
| Axis z | 1.600 mm |
| Axis w | 550 mm |
| Distance between spindle center and table | 0 - 1.600 mm |
| Distance between spindle nose and center of table | 81 - 2.231 mm |
| Table dimensions | 1.200 x 1.500 mm |
| Maximum table capacity | 5.000 Kg |
| Spindle nose | ISO-50 |
| Spindle speed | 35 - 3.500 rpm |
| Spindle steps | 2 steps |
| Quill diameter (w axis) | Ø 110 mm |
| Spindle motor power (cont / 30 min) | 15 / 18.5 kW |
| Fast forward x / y / z axes | 12.000 mm / min |
| 3 axis work feed | 1 - 5.000 mm / min |
| Axis b cutting speed | 11 RPM |
| ATC Positions | 60 |
| Max tool diameter | 125/250 mm |
| Max tool length | 300 mm |
| Max tool weight | 25 Kg |
